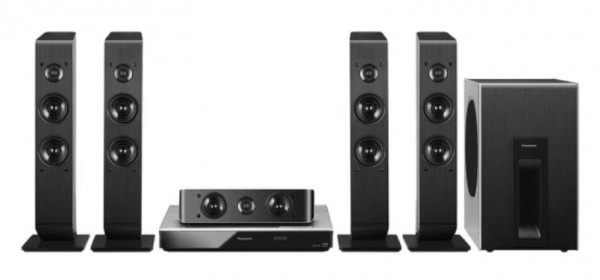

Panasonic SCBTT505EB9 Home Cinema Kit

Panasonic SCBTT505EB9 Home Cinema Kit
£449.90 *

Prices incl. VAT See our collection/delivery/installation options

Available, reserve now for click & collect or home delivery - See ABOUT DELIVERY / CLICK N COLLECT pages under INFORMATION at the bottom of this page

  • PAN-SCBTT505EB9
True to Cinema Sound with 4K Picture Quality Smart Networking with Bluetooth® Wireless... more
Product information "Panasonic SCBTT505EB9 Home Cinema Kit"
  • True to Cinema Sound with 4K Picture Quality
  • Smart Networking with Bluetooth® Wireless Technology & NFC
  • Wide Variety of Online Content with Internet Apps
  • LincsD-Amp 2nd generation for pure brilliant sound
  • Display and share content from smartphone or tablet to a large screen
  • HDMI Input x 2 for Multi-device Connection







Experience a stunning surround effect from above, around and from behind the TV. With an increase from previous models, 36 real and virtual speakers reproduce an amazingly natural surround sound experience.

The clock jitter that occurs during digital amp processing is compensated to reproduce an acoustic waveform that is faithful to the original sound. By also compensating for distortion, including that of peripheral circuits, this provides purer sounds with greater depth. Two LSI circuits control the audio signal to each speaker to produce more jitter-less sound.

Built-in 4K (UHD) up-scaling function instantaneously analyses and compensates the luminance and colour signals for each pixel in the output signal from Full-HD Blu-ray Disc™ media. It also up converts the input signal to 4K video signal (8M pixels) for improved resolution and richer textural expression. You can enjoy movies at home with a level of image quality that is virtually equivalent to that in a digital cinema. * For 4K up-scaling playback a TV with same resolution is required.

The Miracast™ function on this theatre system supports display mirroring using Wi-Fi Direct technology, so it can receive motion image content from a Wi-Fi device and play it on a TV. Even without a Wi-Fi access point in your home, you can display movie content played by your smartphone on the TV screen via a theatre. This lets you share the content you used to enjoy alone on your personal device with other people by displaying it on a large screen TV.

You can access various content and services through the Internet and home networks. In addition, the SC-BTT505 lets you enjoy content in a wide variety of fields, including sports, games, music and more.





BD-ROM
FULL HD 3D/ BD-Video  yes
BD-RE/ BD-RE DL (Ver.3)
JPEG/ MPO  yes
BD-R/ BD-R DL (Ver.2)
Xvid/ MKV  yes
DVD
DVD-Video  yes
DVD-R*1/ DVD-R DL*1/ DVD-RW*1
DVD-Video/ DVD Video Recording  yes
FLAC/ WAV/ WMA/ AAC/ MP3  yes (DVD-R/ DVD-R DL)
JPEG/ MPO  yes (DVD-R/ DVD-R DL)
AVCHD/ Xvid/ MKV  yes/ yes*/ yes* (*DVD-R/ DVD-R DL)
+R*1/ +R DL*1/ +RW*1
Video/ AVCHD  yes
CD, CD-R/ -RW
CD-DA  yes
FLAC/ WAV/ WMA/ AAC/ MP3  yes
JPEG/ MPO  yes
Xvid/ MKV  yes
AUDIO SYSTEM
Output Channel  5.1ch
Power Output - Home Cinema Mode (RMS)
Total Power  1200W
Front  200W/ch (1kHz, 3ohms, 10% THD)
Centre  200W (1kHz, 3ohms, 10% THD)
Surround  200W/ch (1kHz, 3ohms, 10% THD)
Subwoofer  200W (55Hz, 3ohms, 10% THD)
Dolby® Digital  yes
Dolby® Digital Plus/ Dolby TrueHD  yes
Dolby® Pro Logic II  yes
DTS-HD™ Master Audio Essential/ DTS-HD™ High Resolution Audio  yes
USB
Slot  yes (2)
Front  For Playback
Rear  For Playback
USB Standard  USB 2.0 High Speed
Playback
FLAC/ WAV/ WMA/ AAC/ MP3  yes
JPEG/ MPO  yes
Xvid/ MKV/ MP4/ MPEG-2  yes
HIGH QUALITY PICTURE
Built-in 4K (Ultra HD) Up-scaling  yes*2
2D-3D Conversion  yes (BD/ DVD/ CD/ VOD/ USB/ NAS)
3D Effect Controller  yes (BD/ DVD/ CD/ VOD/ USB/ NAS)
Full HD Up Sampling  yes
1080/24p Playback  yes*3
1080p Up-Conversion with HDMI  yes
Deep Color  yes
x.v.Color  yes*4
HIGH QUALITY SOUND
3D Cinema Surround  yes (Advanced)
LincsD-Amp  yes (2nd generation)
Digital Music Connection for iPod®/ iPhone®  yes
H.Bass  yes
EQ/ Centre Focus/ Subwoofer Level  yes
EASY OPERATION
Wireless Rear Speakers  yes (Ready with Optional Kit*5)
Smartphone Remote Control  yes*6*7
Multi-User Mode/ Stylish GUI/ Wallpaper  yes
Selectable Speaker Layout  yes
ARC  yes
Easy Settings  yes
NETWORKING
Internet Apps  yes*8
Panasonic Music Streaming App  yes*7
Bluetooth® Wireless Technology  yes
aptX®Low Latency  yes
DLNA (DMP & DMR)  yes
NFC (One-Touch Connection)  yes*9
Wireless LAN System  yes (Built-in)
Network Drive Access  yes
External HDD Playback  yes*12
BD-Live™  yes*13
Miracast™  yes*10
USB Connection for iPod/ iPhone  yes (Integrated)
iPod/ iPhone Playback (Music)  yes
Front
Configuration  2-way 3 speakers, Bass-reflex
Speaker Unit [Approx.]  Woofer: 8 cm Cone Type x 2 Tweeter: 2 cm Dome Type
Centre
Configuration  2-way 3 speakers, Bass-reflex
Speaker Unit [Approx.]  Woofer: 6.5 cm Cone Type x 2 Tweeter: 2 cm Dome Type
Surround
Configuration  2-way 3 speakers, Bass-reflex
Speaker Unit [Approx.]  Woofer: 8 cm Cone Type x 2 Tweeter: 2 cm Dome Type
Subwoofer
Configuration  1-way 1 speaker, Bass-reflex
Speaker Unit [Approx.]  Woofer: 20cm Cone Type
TERMINAL
HDMI Output  yes
Video Output  -
HDMI Input  yes (2)
Digital Audio Input  yes
Analog Audio Input (AUX)
Pin Jack  yes
Music Port  -
LAN (Ethernet) Terminal  yes (for DLNA, BD-Live™*13, Internet Apps*8 and Firmware Update)
OTHERS
Video System  PAL/ NTSC
Power Supply  AC 220-240V, 50Hz
Power Consumption
Normal Use [Approx.]  85W
Standby [Approx.]  0.5W
Band/ Station Presets  FM/ 30
RDS  yes
Main Unit
Dimensions (W x H x D) [Approx.]  430 x 65 x 326 mm
Weight [Approx.]  3.0 kg
Front Speaker
Dimensions (W x H x D) [Approx.]  157 x 537 x 155 mm*14
Weight [Approx.]  1.9 kg*14
Centre Speaker
Dimensions (W x H x D) [Approx.]  349 x 89 x 94 mm
Weight [Approx.]  1.2 kg
Surround Speaker
Dimensions (W x H x D) [Approx.]  157 x 537 x 155 mm*14
Weight [Approx.]  1.9 kg*14
Subwoofer
Dimensions (W x H x D) [Approx.]  258 x 424 x 334 mm
Weight [Approx.]  9.0 kg
NOTE  *1 Discs recorded and finalized on recording devices. *2 Only Full-HD and SD 24p content can be up-converted for 4K2K resolution. For 4K Up-scaling playback a TV with same resolution is required. *3 For BD-ROM/ BD-R and DVD-Video via HDMI. *4 This function is effective only when reproducing AVCHD data recorded with x.v.Colour technology. The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required. *5 With the purchase of SH-FX82. *6 Requires the device with the App installed and the home cinema to be connected to the same home network. *7 App is available on the App Store. App is available on Google Play™. *8 Requires broadband Internet service. *9 To use NFC without downloading App, an OS Version 4.1 or later Android™ device is requrired. The installation of the Panasonic Music Streaming App allows use of an Android smartphone or tablet with the NFC function and OS Version 4.1 or earlier. *10 Compatible with Android™ devices, Ver. 4.2 and above and Miracast certified. For information on whether the smartphone, etc. supports Miracast, contact the manufacturer of the device. *11 With the purchase of Wireless LAN Adaptor DY-WL5. *12 The external HDD with capacities of 2TB or less in processing NTFS/ FAT32 data is supported. Playback is not possible with some external hard disk drives. *13 To enjoy content, you will need to insert a USB flash drive (1GB or more of free space/ sold separately). Requires broadband Internet service. *14 Full assembly with stand base. Playability may vary depending on the contents, discs and quality of the recording. For content recorded disc for your personal use. ・Specifications are subject to change without notice.
TRADEMARK NOTICE  Blu-ray Disc™, Blu-ray? and the logos are trademarks of the Blu-ray Disc Association. "AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation. DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. aptX® software is copyright CSR plc or its group companies. All rights reserved. The aptX® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. DTS, DTS-HD, the Symbol & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. "Google Play" and "Android" are trademarks of Google Inc. "Miracast" is a mark or registered mark of the Wi-Fi Alliance. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. iPhone, and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.





Product Type: Home Cinema System
Discs Played: BluRay, DVD & CD Player
4K 6K: 4K upscaling
Bluetooth: With Bluetooth
Colour/finish see item for exact: Black
Speakers: 5 x Speakers + Subwoofer (5.1)
