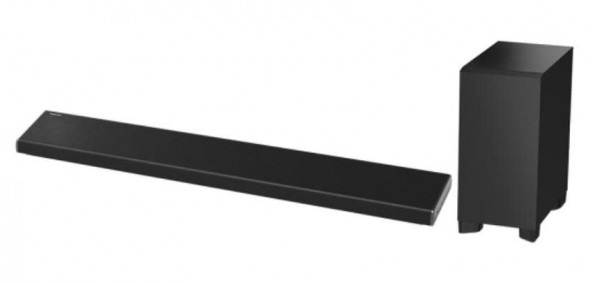

Panasonic SCHTB690EBK Soundbar

Panasonic SCHTB690EBK Soundbar
£239.90 *

Prices incl. VAT See our collection/delivery/installation options

Good news: This product is in stock, shop local and reserve now

  • 3.1 Output
  • Wireless
  • 360W RMS
  • PAN-SCHTB690EBK
3.1ch Surround Sound with Clear-mode Dialog Wireless Subwoofer Well Balanced Sound... more
Product information "Panasonic SCHTB690EBK Soundbar"

3.1ch Surround Sound with Clear-mode Dialog
Wireless Subwoofer
Well Balanced Sound
Low-height Design for VIERA Matching
4K Signal Pass Through with HDCP 2.2
Bluetooth® Wireless Technology with NFC



        Three speakers in the sound bar and a powerful wireless subwoofer combine to produce a stunningly clear, rich, and rounded soundstage far more dynamic and immersive than anything your TV’s speakers could deliver.

This sound bar truly goes the extra mile to improve sound quality from all your sources. Its speakers are shaped to suppress distortions and feature diaphragms designed to enhance bass, while an amp removes the sound quality fluctuations often heard at high-volumes.

The new low-height design lets you place your sound bar in front of the TV without blocking the view. The slanted shape made it possible to incorporate a large speaker while keeping the body slim. In addition, Wall mounting enables a stylish layout even in rooms with limited space. The sound direction can be changed to 0°or 90°, respectively, by standing the system on a counter or mounting it to the wall. Both installation types allow you to configure an optimal theater space.

A 4K video signal with HDCP 2.2 (High-bandwidth Digital Content Protection, which is a copyright protection technology demanded by Movielabs (Motion Picture Laboratories)) is directly transmitted from a Blu-ray DiscTM player via a pass-through system. The connection is extremely simple, with no need to route separate cables for video and audio.

Music data from a compatible device is sent to the sound bar by wireless transmission. So you can enjoy the music from smartphone or tablet with your sound bar in high quality sound.

AUDIO SYSTEM
Output Channel  3.1ch
Power Output / Home Cinema Mode(RMS)
Total Power  350W
Front  70W/ch (1kHz, 6ohms, 10% THD)
Center  70W (1kHz, 6ohms, 10% HD)
Subwoofer  140W (100Hz, 3ohms, 10% THD)
Dolby Digital  yes
Dolby Pro Logic II/ Dolby Virtual Speaker  yes
DTS Digital Surround  yes
PLAYABLE FORMAT
MP3/ AAC/ WAV/ FLAC/ ALAC  -
SMART NETWORKING
Bluetooth® Wireless Technology  yes
Panasonic Music Streaming App*3  yes
NFC (One-Touch Connection)*4  yes
HIGH QUALITY SOUND
Clear-mode Dialog  yes
Dialog Level Control  yes
Multi-angle Speaker Layout  yes(0deg/90deg)
H.Bass  yes
Up to 7.1ch Linear PCM Input via HDMI  yes
HIGH QUALITY PICTURE
FULL HD 3D Compatible  yes
1080p Output (x.v.Colour, Deep Colour)  yes
EASY OPERATION
4K/60p Signal Pass Through  yes(HDCP2.2)
Wireless Subwoofer  yes
Auto Gain Control  yes
ARC (Audio Return Channel)*5  yes
IR Blaster Included  yes
HDMI CEC  yes
Wall-Mountable Speaker  yes
Front
Configuration  2-way 2 speaker, Bass-reflex (TENTATIVE)
Speaker Unit  Full Range: 6.5 cm Cone Type
Centre
Configuration  1-way 1 speaker, Bass-reflex (TENTATIVE)
Speaker Unit  Full Range: 6.5 cm Cone Type
Subwoofer
Configuration  1-way 1 speaker, Bass-reflex (TENTATIVE)
Speaker Unit  Woofer: 16 cm Cone Type (TENTATIVE)
TERMINAL
HDMI Output  yes (TV)
HDMI Input  yes (BD/ DVD)
Optical Digital Audio Input  yes (TV)
Analogue Audio Input (AUX)
Pin Jack  -
OTHERS
Power Supply  AC 220-240V, 50Hz
Power Consumption / Front
Normal Use  42W
Standby (Bluetooth standby off)  0.48W*6
Power Consumption / Subwoofer
Normal Use  30W
Standby (Power switch off)  0.48W*7
Display  FL(Dot Matrix)
Remote Control  yes
Front Speaker
Dimensions (W x H x D)  950 x 55 x 120 mm
Weight  2.6 kg
Subwoofer
Dimensions (W x H x D)  180 x 378 x 303 mm
Weight  5.0 kg
NOTE  *1 Party Mode; playing a single sound source simultaneously through multiple speakers. The maximum number of speakers is limited (Under study). *2 Multi Zone; playing each of multiple songs within the same network to separate speakers. The maximum number of sound sources is limited (Under study). When using a subscription service, this function depends on the conditions of the service provider (Under study). *3 Download on the App Store. Download on Google Play™. *4 To use NFC without downloading App, an OS Version 4.1 or later AndroidTM device is requrired. The installation of the Panasonic Music Streaming App allows use of an Android smartphone or tablet with the NFC function and OS Version 4.1 or earlier. *5 ARC compatible TV is required. *6 The other connected devices have to be turned off. Standby (Bluetooth standby on) power consumption approximately 3.0W(HTB885/ HTB485), 4.0W (ALL70T/ HTB690). *7 Standby (Wireless Link is not activated) power consumption approximately 0.4W(HTB885), 3.0W (ALL70T/ HTB690), 1.3W(HTB485). Specifications are subject to change without notice. All numbers given here are approximate.
TRADEMARK NOTICE:  Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. DTS, DTS-HD, the Symbol & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. "Google Play" and "Android" are trademarks of Google Inc. aptX® software is copyright CSR plc or its group companies. All rights reserved. The aptX® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Used with permission. AllPlay is a trademark of Qualcomm Connected Experiences, Inc., registered in the United States and other counties. Used with permission





Product Type: TV Soundbar
Bluetooth: With Bluetooth
Colour/finish see item for exact: Black
Speakers: Single Unit + Subwoofer
